Chison ECO 1 Portable Ultrasound Machine

Chison ECO 1 Portable Ultrasound Machine

Chison ECO 1 is the newest model from Chison. Provides varied high frequency probes and good image quality. Chison ECO 1 portable ultrasound is both reliable and affordable. A comprehensive and excellent choice for a diagnostic tool.

Açıklama

Chison ECO 1 Portable Ultrasound Machine

Chison ECO 1 Portable Ultrasound Machine uses the latest advanced technologies such as:

Compound Imaging, SRA, Multiple Beam-forming, and Tissue Harmonic Imaging.

These improve the image quality, resolution, penetration and frame rate, and ECO is the only system that has all these advanced features on a black and white ultrasound.

is lightweight at 14 pounds including battery. The AC adapter is very small and lightweight for travel, three times smaller than most other portable machines.

Has a medical grade LED screen to allow a brighter image outdoors, and is energy saving and eco-friendly compared to other models with LCD.

Feature’s one key to full screen image, making the image as a 15″ screen, while keeping the machine small and portable. Also one key to generate a complete.

Report including: automatic measurement captured, picture and comments added.

This is very streamlined and convenient for faster exams and reports, while other ultrasounds complicate these steps.

Supports both video and pc printers, and advantage over most others that only support video printer.

Simply connect the PC printer through the USB port, and hit one key to print.

Has complete DICOM function including: storage, print, structure report (vascular, OBGYN, cardiac, etc.)

Chison ECO 1 Portable Ultrasound Machine

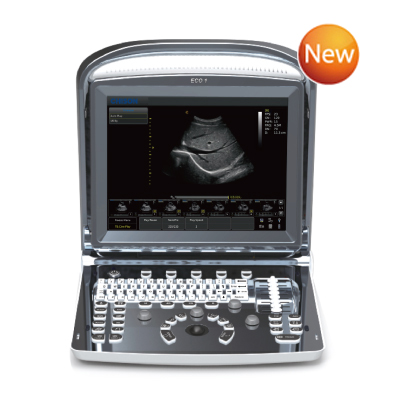

  • 12 inch rotatable LED monitor (0 – 30 deg) adapt to different viewing angles
  • Ultra light and compact design, ideal for mobile services
  • Applications: Urology, Vascular, Small Parts, Pediatrics, Cardiology
  • Display Modes: B, B/B, 4B, M, B/M
  • Gray Scale 256 Levels
  • Multiple Beam forming Technology (Enhance Frame Rate, Improve Image Resolution)
  • 240mm Max Scanning Depth (depending on the probe type)
  • 2.5MHz – 11MHz Probe Frequency (depending on the probe type)
  • Archives Management – Patient information management, Patient images record, Patient exam report.
  • Power Supply – AC 240V-100V, 50Hz-60Hz
  • A broad range of transducers available
  • Software packages, General measurement, OB, Obstetrics, GYN, Urology, Abdomen, Cardiac B/M mode, Vascular, Small parts, Orthopedic, Pediatrics.

Chison ECO 1 Portable Ultrasound Machine

  • Main Unit
  • 3 USB ports
  • 1 Probe Connector
  • C3-A convex probe included
  • VGA Port
  • Video Port
  • LAN Port
  • Build in Battery
  • DICOM 3.0
  • Carry Bag

Chison ECO 1 Portable Ultrasound Machine
