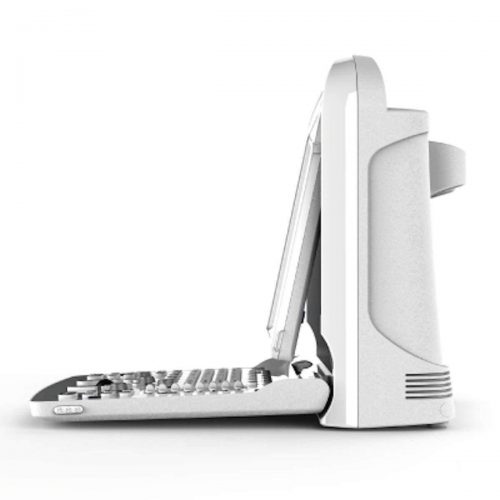

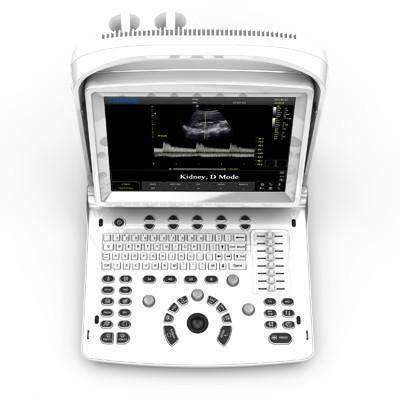

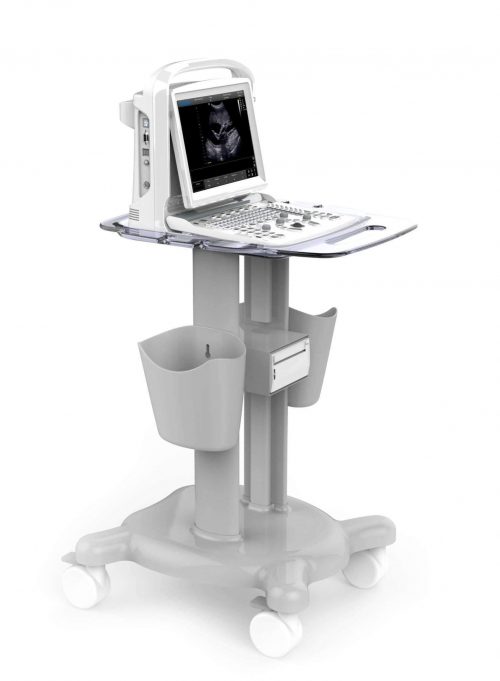

Chison ECO 3 Expert Ultrasound Machine

Chison ECO 3 Expert Ultrasound Machine

Chison ECO3 EXPERT is beautifully designed as an ultra-compact ultrasound machine that offers excellent PW resolution. Delivers both qualitative and quantitative results! Easy to carry, this excellent ultrasound is for all kinds of examinations. Some features of the Chison ECO-3 EXPERT ultrasound are listed below.

Açıklama

Chison ECO 3 Expert Ultrasound Machine

Echo:

  • Advanced Technology:
    • i-Image (Image optimization software)
    • THI (Tissue Harmonic Imaging)
    • SRA (Speckle Reduction Algorithm)
    • Compound Imaging
    • AIO (Automatic Image Optimization)
  • Full Digital Beam-Former
  • Automatic PW trace
  • Excellent PW resolution
  • Automatic PW trace measurement
  • Chroma
  • Full-Screen Display Mode
  • Applications – Abdomen, OB/GYN, Vascular, Small parts( breast, testes, thyroid), musculoskeletal Conventional & Superficial, Pediatric, Basic Cardiac
  • Imaging technologies – i-Image, SRA, Compound imaging, THI
  • Display Modes – B, B/B, 4B, M, B/M, PW
  • Software Packages​ – Dedicated measurement package: General, OB/GYN, URO, Cardiac, vascular, small parts
  • Archives Management​ – Patient information management, images record, exam report.
  • Documentation​ – Full-screen documentation, Hospital name, Patient name, Date/time
  • OB growth curve
  • Power Supply​ – AC 100V-240V, 50Hz- 60Hz

Chison ECO 3 Expert Ultrasound Machine

  • Main unit
  • 2.5MHz – 5.0MHz Convex probe C3-A
  • 2 probe connectors
  • 3 USB ports
  • VGA port, Video port, LAN port
  • Full-Screen Display Mode
  • i-Image, Chroma, SRA
  • Compound imaging, THI,
  • 8G memory, PW Mode

Chison ECO 3 Expert Ultrasound Machine

 Applications  Abdomen,OB/GYN,Vascular, Small parts(breast, testes, thyroid),Musculoskeletal   Conventional & Superficial,  Pediatric, Basic Cardiac
 Imaging technologies  i-Image,SRA,Compound imaging,THI
 Display Modes  B, B/B, 4B, M, B/M,PW
 Gray Scale  256 Levels
 Probe Frequency  2.5 MHz – 11.0 MHz (Depend on the probe)
 Cine Loop  256 frames
 Zoom  PIP zoom & pan zoom
 Software Packages  Dedicated measurement package: General, OB/GYN, URO, Cardiac, vascular, small  parts
 Archives  Management  Patient information management, images record, exam report
 Power Supply  AC 100V-240V, 50Hz- 60Hz
 Option  DICOM 3.0, Water-proof keyboard cover, Carrying Case (BG-100 ),Cart TR 9000     Support PC Printer, Video Printer
