Chison Eco 2 Portable Ultrasound

Chison Eco 2 Portable Ultrasound

Chison Eco 2 Portable Ultrasound uses the latest advanced technologies such as: Compound Imaging, SRA, Multiple Beam-forming, and Tissue Harmonic Imaging. These improve the image quality, resolution, penetration and frame rate, and ECO is the only system that has all these advanced features on a black and white ultrasound

Açıklama

Chison Eco 2 Portable Ultrasound

Chison Eco 2 Portable Ultrasound uses the latest advanced technologies such as: Compound Imaging, SRA, Multiple Beam-forming, and Tissue Harmonic Imaging.

These improve the image quality, resolution, penetration and frame rate, and ECO is the only system that has all these advanced features on a black and white ultrasound.

ECO2 is lightweight at 14 pounds including battery. The AC adapter is very small and lightweight for travel, three times smaller than most other portable machines.

ECO2 has a medical grade LED screen to allow a brighter image outdoors, and is energy saving and eco-friendly compared to other models with LCD.

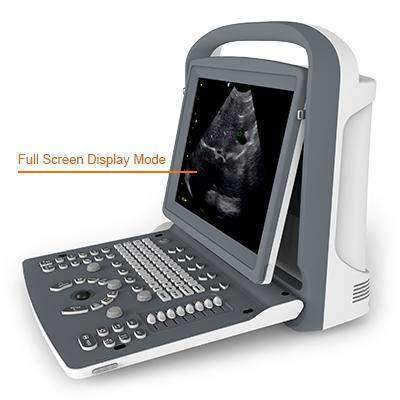

ECO2 feature’s one key to full screen image, making the image as a 15″ screen, while keeping the machine small and portable.

Chison Eco 2 Portable Ultrasound

  • Rotatable LED(0~30°) tailer to different viewing angles
  • Ultra-compact & Ultra-light
  • Easy to carry
  • Keyboard: For easy and quick access
  • Dedicated Cart TR 9000 (KM-6)
  • Streamlined workflow
 Applications  Abdomen, OB/GYN, Vascular, Small parts(breast, testicles,  thyroid, Musculoskeletal Conventional & Superficial, Pediatric, Basic Cardiac
 Imaging  technologies  i-Image, SRA, Compound, THI
 Display  Modes  B, B/B, 4B, M, B/M, PW
 Gray Scale  256 Levels
 Scanning  Depth  240mm Max (depending on the probe types)
 Probe  Frequency  2.5 MHz – 11.0 MHz (Depending on the probe)
 Cine Loop  256 frames
 Zoom  4 steps
 Software  Packages  Dedicated measurement package: General ,OB/GYN, URO,Cardiac, Vascular,  Small parts
 Archives  Management  Patient information management, images record, exam report
 Power Supply  AC 100V-240V, 50Hz- 60Hz
 Standard  Configuration 2 probe connectors, 3 USB ports, VGA port,Video port, LAN port, Full Screen Display Mode, i-Image,Chroma, SRA, Compound imaging,THI, 8G memory card, PW Mode, Support PC Printer, Video Printer, Built-in Battery, DICOM 3.0, Carrying Case (BG—100)
 Option Water-proof keyboard cover, Cart TR 9000, 320G hard drive, Vehicular Charging.

Chison Eco 2 Portable Ultrasound

  • Advanced technologies:
  • i-Image (Intelligent image optimization)
  • THI (Tissue Harmonic Image)
  • SRA (Speckle Reduction Algorithm)
  • Compound imaging
  • Full digital beam-former
  • Trapezoid
  • Automatic PW trace
  • Chroma
  • Full screen display mode
  • AIO (Automatic image optimization)

ECONOMIC

  • The latest platform & more advanced chip-set: brings you better image quality and features at less cost in a more compact box
  • Support PC printer, reduce investment & day to day paper cost
  • 8G memory card

ECO-FRIENDLY

  • Less radiation
  • Less power consumption
  • Longer usage life: LED
  • Longer battery standby time:>2 hours
